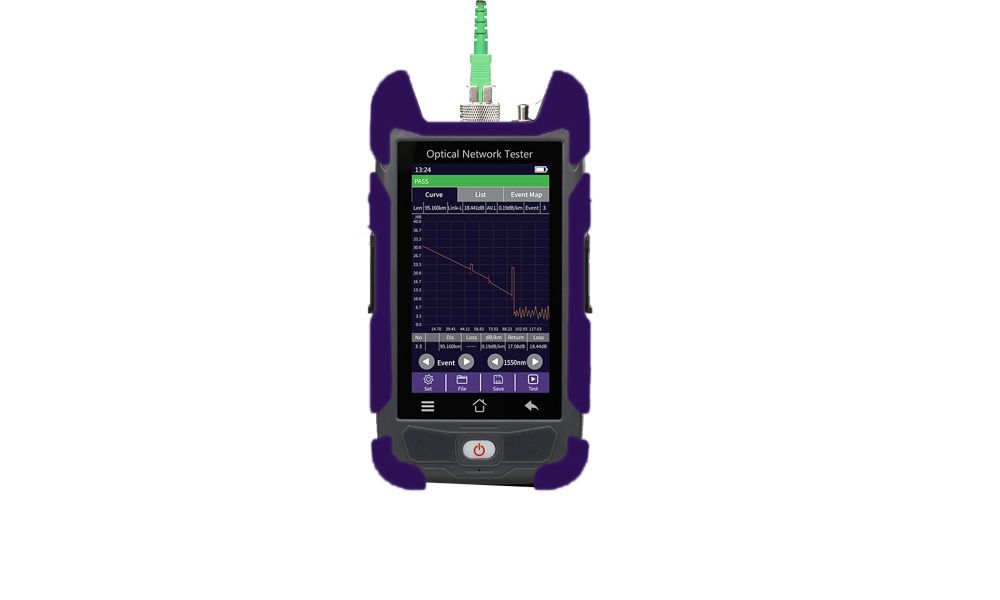

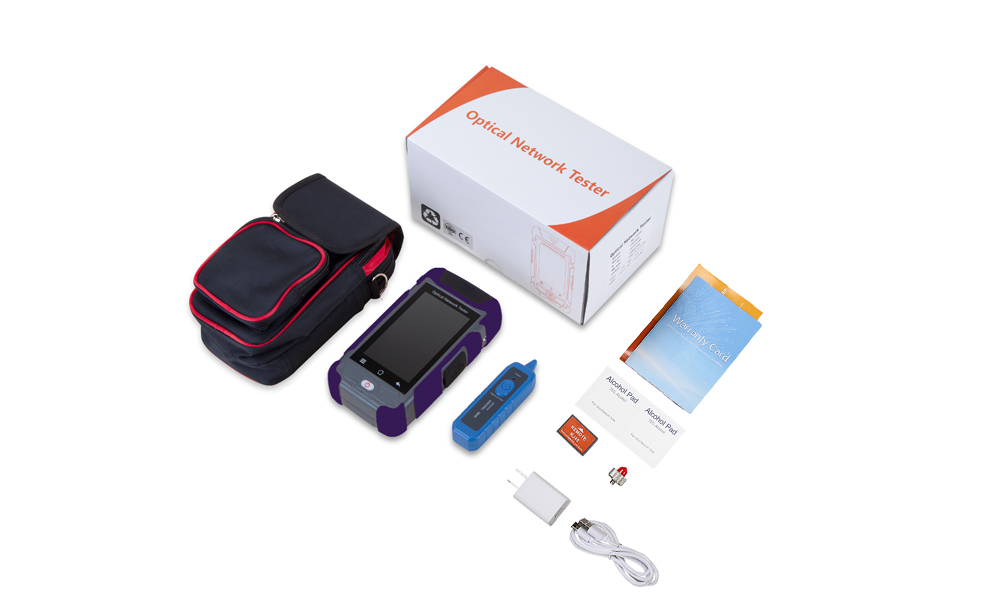

TV-NT60 Series are used to measure the fiber and cable length, loss, connection quality and other parameters. They are widely used in the construction of Metropolitan area network communication system, line maintenance and emergency repair test, research and production measurement of optical fiber and cable.
² AUTO OTDR ² Expert OTDR ² iLOM-Event Map
² Visual fault location (VFL) ² Stable laser source
² RJ45 Ethernet Cable Sequence measurement
² RJ45 Cable Length measurement ² Optical Loss Test ² Optical power meter (OPM)
² Laser Ranging ² RJ45 Line-Tracker Function ² Flashlight
Technical Specifications
Mini OTDR | ||||
Model | S1 | P1 | P2 | M1 |
Wavelength | 1310/1550nm | 1625nm | 1650nm | 830/1300nm |
Dynamic Range | 28/26dB | 26dB | 26dB | 20/22B |
Event Blind Zone | 1.2m | 1.5m | ||
ATT Blind Zone | 5m | 6m | ||
Test Range | 500m/1km/2km/4/km/8km/16km/32/km/64km/100km | |||
Pulse Width | 3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1μs/2μs/3μs/5μs/8μs/10μs/20μs | |||
Ranging accuracy | ±（1m+Sample interval+0.005％×Test distance） | |||
Linearity | ≤0.05dB/dB | |||
Sample Points | 16k-256k | |||
Sample Resolution | 0.05m~8m | |||
Loss Resolution | 0.001dB | |||
Loss Threshold | 0.01dB | |||
Range Threshold | 0.001m | |||
Refractive Index | 1.00000~2.00000, 0.00001 Step | |||
Reflection Accuracy | ±3dB | |||
Data Storage | Internal: ≥600； External: TF Card | |||
File Format | SOR Standard File Format | |||
Laser Safety Level | Class II | |||
Loss Safety Level | 4-point method /5-point method | |||
Connector | FC/UPC(Interchangeable SC、ST) | |||
Refresh Rate | 3Hz (Typ.) | |||
Multitasking | Support | |||
OPM | LS | ||
Wave Range | 800-1700nm | Wavelength | Consistent with OTDR |
Interface Type | Universal Joint FC/SC/ST | Output power | ≥-5dBm |
Test Ranger | -70~+10/- 50 ~ +26dBm | Mode | 270/330/1K/2KHz |
Uncertainty | ±5% | Stability | CW, ±05dB/15min(after 15mins of preheating) |
Frequency Identification | CW/270/330/1K/2KHz(Use inner LS) | Connector | FC/UPC(Interchangeable SC、ST) |
Calibration wavelength | 850/980/1300/1310/1490/1550/1625/1650nm | Laser Type | FP-LD |
Resolution | 0.01dB | Wave Recognition | Support |
Wave Recognition | Support | VFL | |
Laser Ranging | Wavelength | 650nm ±20nm | |
Test Range | 0.05~40m | Output Power | ≥10mW |
Accuracy | ±20m | Mode | CW/1 KHz /2KHz |
Laser Type | 620~690nm | Connector | FC/UPC (Interchangeable SC/ST) |
Laser Safety Level | Class II | Laser Safety Level | Class II |
Optical Loss Test | RJ45 Cable Tracker | ||
Wavelength | Consistent with LS | Mode | Digital/Analog Tracking |
Test Range | Consistent with OPM | Distance | ≥300m |
IL Test | Support | Online Tracking | Support |
RJ45 Cable Length Measurement | |||
Test Range | 300m | ||
Other Parameters | |||
Display | 4.3 inches 800×480 IPS TFT-LCD Multi touch capacitive touch screen | ||
Data Storage | Internal storage：8GB，≥20 thousand curves | ||
Data Interface | USB Type C | ||
Power Supply | AC/DC adapter：input：100V～240V，50/60Hz，0.6A output：5V，2A，Lithium battery：3.7V，4000mAh | ||
Battery Working | High brightness，Continuous test＞8 hours | ||
Fingerprint Identification | Optional | ||
Operating Temperature | -10℃~+50℃~ | ||
Storage Temperature | -40℃~+70℃~ | ||
Relative Humidity | 0~95% Non Condensing | ||
Size | 174mm*92mm*45mm | ||
Weight | About 0.4kg(Battery included) | ||
