Model | VFL650-5S | ||
Central wavelength | 650nm±10nm (635nm is available on request) | ||
Emitter type | FP-LD | ||
Output power | ＜5mw | ＜10mw | ＜20mw |
Laser Range | ≥5km | ≥10km | ≥20km |

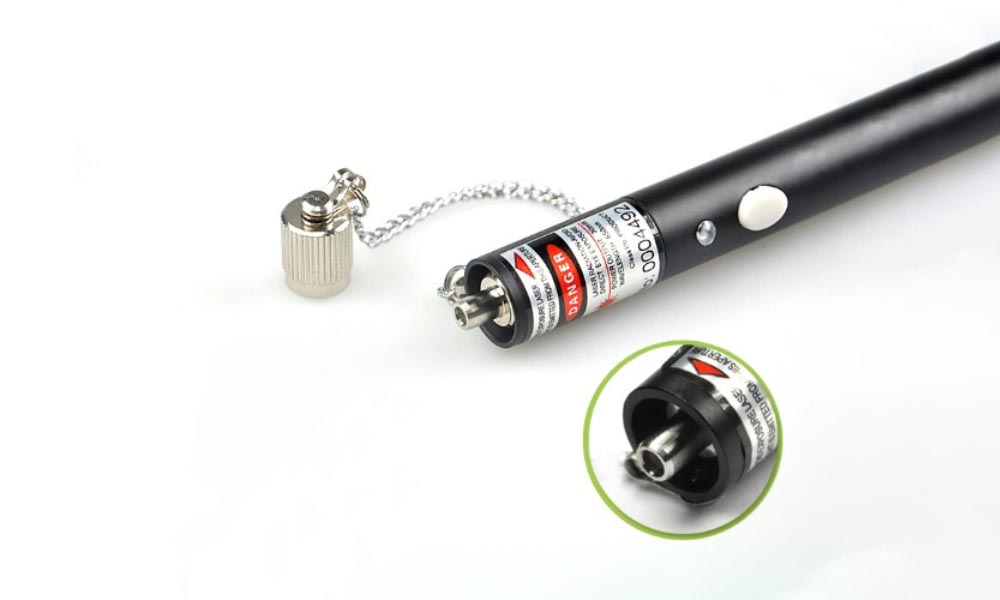

Optical connector | 2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. (Female) convertor can be provided on request | ||
Operating model | Both CW and Pulse available | ||
Pulse frequency | 2Hz to 3Hz / 9Hz | ||
Power supply | 2 AAA alkaline batteries | ||
Operating temperature | -20°C to 60°C | ||
Storage temperature | -40°C to 85°C | ||
Dimension | Ø13 x 181mm | ||
Weight | 106g (without battery) | ||
