Feature
²Display relative optical power ²Test online without interruption of the link
²Recognize the signal of 270Hz, 1KHz, 2KHz. ²Comes with a hood to provide more accurate test results outdoors

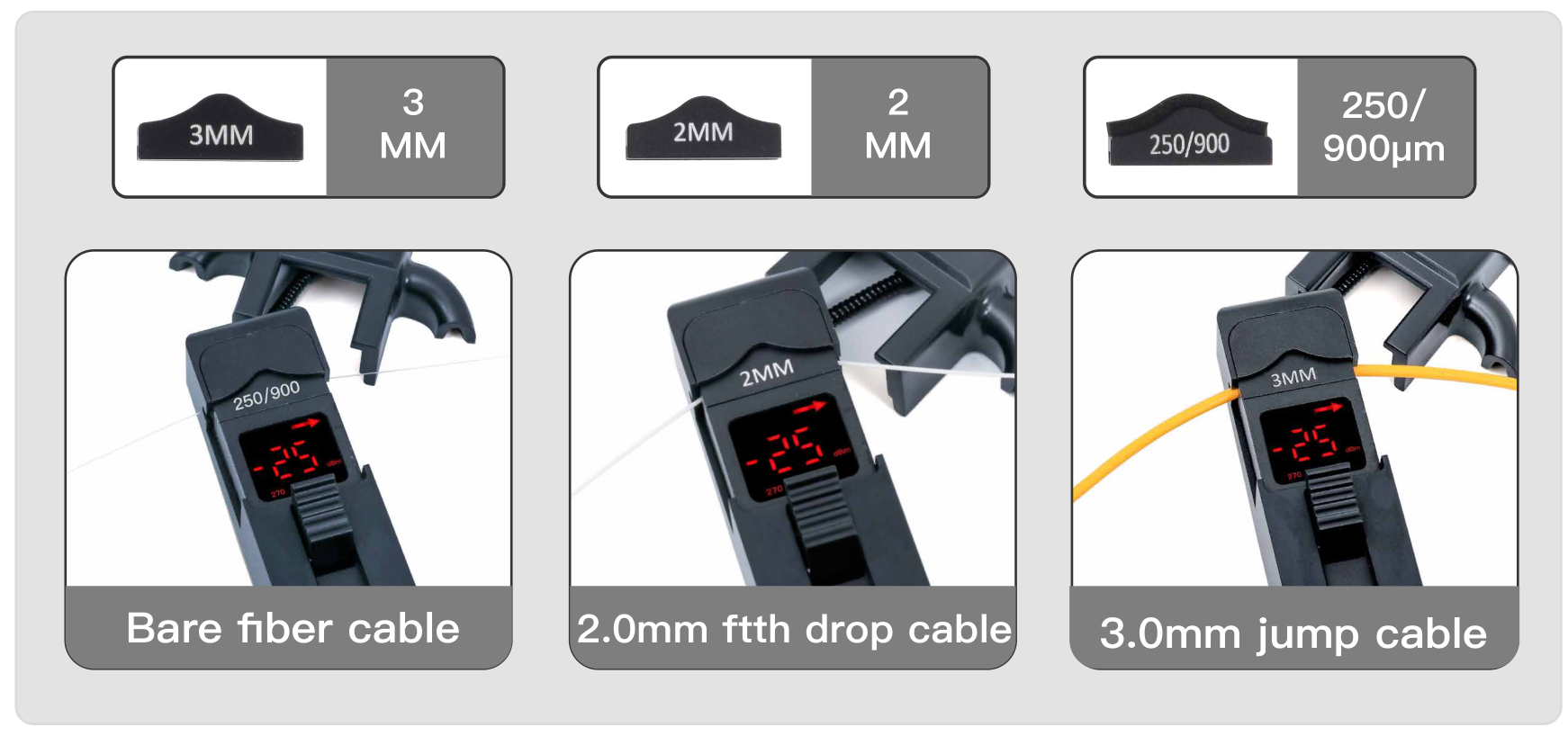

²Identify the propagation direction of light sound alarm reminder ²LED display, 4 fixtures support bare fiber, 0.9mm, 2mm, 3mm fiber.
²Test Sensitivity -40dBm to 10 dBm ²Low power reminder
Technical Specifications
Model | TV-FI06 |
Identified Wavelength Range | 800nm to 1700nm |
Identified Signal Type | CW,270 Hz ± 5%,1 kHz ± 5%,2 kHz ± 5% |
Detector Type | φ1mm InGaAs 2 pcs |
Adapter Type | φ0.25(for Bare Fiber),φ0.9,φ2.0(Applicable for φ3.0Cable) |
Signal Direction | Left & Right LED |
Optical Power Reading | -40 dBm to 10 dBm |
Signal Frequency | 270Hz,1kHz,2kHz |
Power Supply | AA*2 |
Operating Temperature | -10℃ to 60℃ |
Storage Temperature | -25℃ to 70℃ |
Dimension | 195mm*10mm*8mm |
Weight | 235g |
