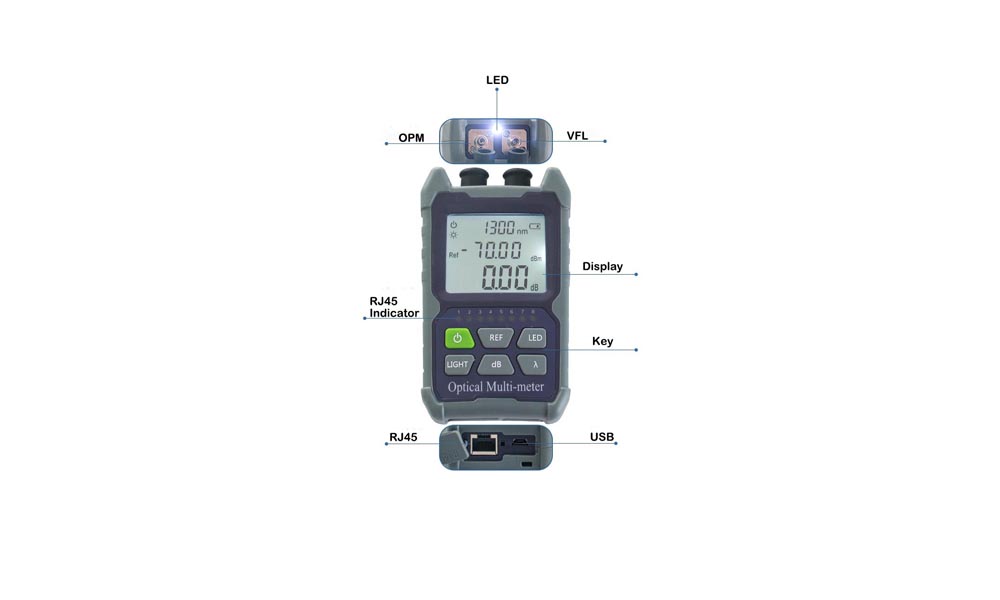

TV-PM40 Mini optical Power Meter and VFL all-in-one machine series are controlled by single-chip microproc-essor but multifunction. It can be well protected by using embedded detector and laser. The whole machine has automatic shutdown function, three VFL modes, backlight display, wavelength memory function, user calibration, wide test range, lighting, RJ45 cable sequence and cable tracker test function
Multifunctional Test

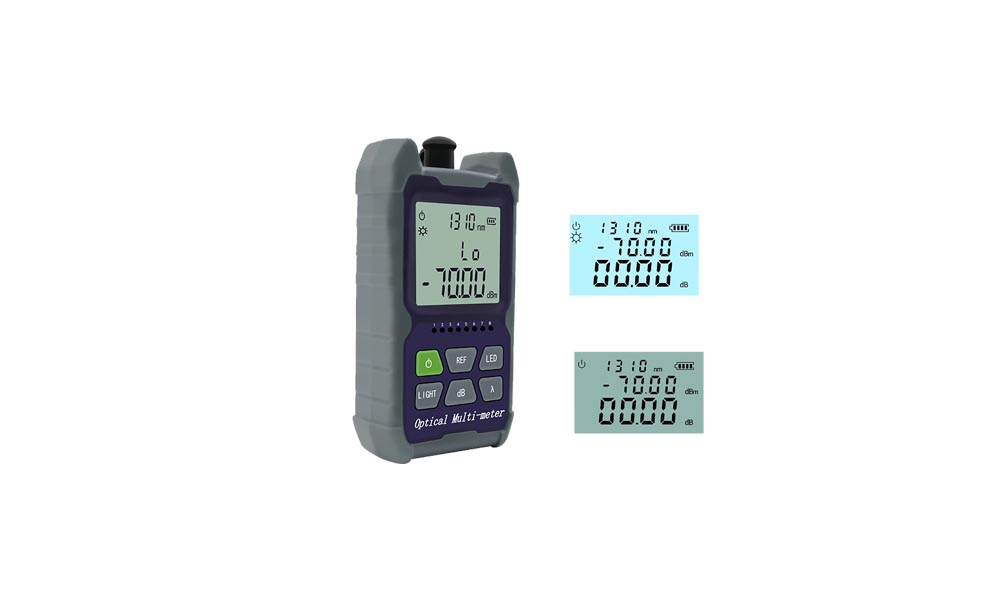

²Supporting lighting ²Support backlight switch/automatic shutdown
²Support working frequency identification(optional) ²Support simultaneous display of mW/dBm
²Supporting portable battery charging ²Support wave memory when shutdown
²Support user calibration ²Always on and flashing red light
²Support SC/FC/ST interface ²Support RJ45 test(optional)
Technical Specifications
OPM | ||
Wave Range | 800nm~1700nm | 800nm~1700nm |
Connector | Universal FC/SC/ST | Universal FC/SC/ST |
Detector Type | InGaAs | InGaAs |
Power Range | -70dBm~+6dBm | -50dBm~+26dBm |
Uncertainty | ±5% | |
Calibration Wave | 850/980/1300/1310/1490/1550/1625/1650nm | |
Display Resolution | Linear display: 0.1%, logarithmic display: 0.01dBm | |
VFL(Options) | ||
Wave | 650nm±30nm | |
Output power | 2mW/10mW/30mW/50mW | |
Mode | CW/1Hz/2Hz | |
Others | ||
Power Supply | Two AAA batteries/ 700mAh Rechargeable Lithium Battery(Options) | |
Auto Shutdown Time | 10min | |
Continuous Working Time | ≥ 120h(OPM function) | |
Operating Temperature | -10℃~+50℃ | |
Storage Temperature | -40℃~+70℃ | |
Relative Humidity | 0~90% Non Condensing | |
Size | 112mm*66mm*30mm | |
Weight | 140g/150g | |
