Feature

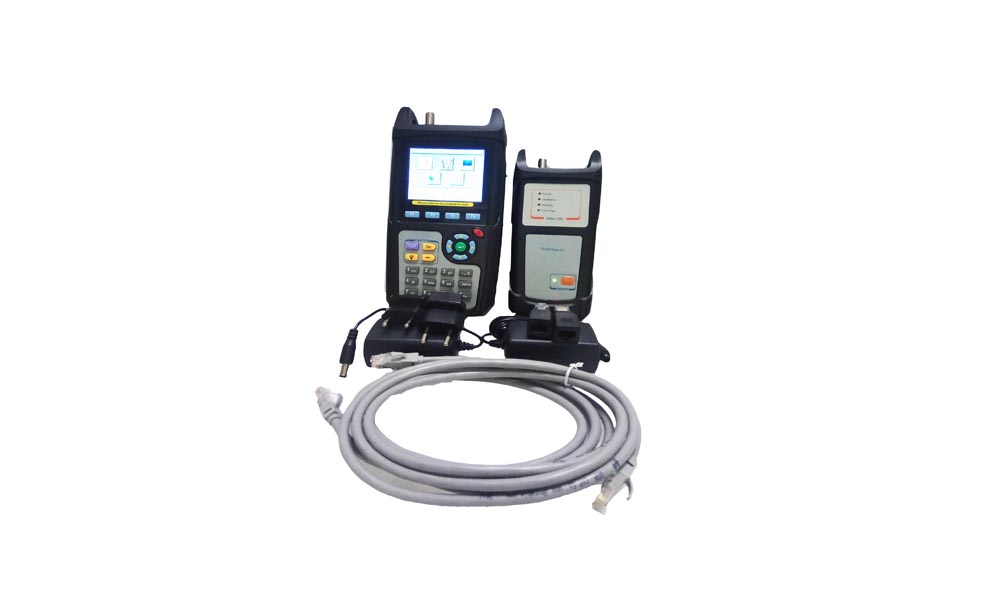

Contains a main unit and a remote unit.
Multi connector: one RJ45 connector for UTP/STP data cable testing, one F connector for coax testing
One RJ11 connector for telephone cable testing and two banana jacks for 2-wires testing
Support International standard ISO/IEC 11801 and
American standard TIA/EIA-568-B
Tone generator.
Two additional functions: Ping and BER Test
Store at least 100 results
Toolbox software to analyze the results on PC
Technical Specifications
Items
Range
Resolution
Accuracy
Length
0 m ~ 176 m (UTP)
0 m ~ 200 m (Coax)
0.1 m
±1.5 m
Propagation Delay
0 ns ~ 850 ns
1 ns
±7 ns
Delay Skew
0 ns ~ 100 ns
1 ns
±15 ns
DC Resistance
0 Ω ~ 100 Ω
1 Ω
±2 Ω
RF Frequency
1 MHz ~ 250 MHz
NEXT, Return Loss, ELFEXT:
1 to 31.25 MHz: 150 kHz
31.25 MHz ~ 100 MHz: 250 kHz
100 MHz ~ 250 MHz: 500 kHz
Insertion Loss: 1 to 250 MHz: 1 MHz
RF Items
NEXT: 0 ~ 70 dB Insertion Loss: 0 ~ 40 dB
0.1 dB
±2 dB (Insertion Loss)
